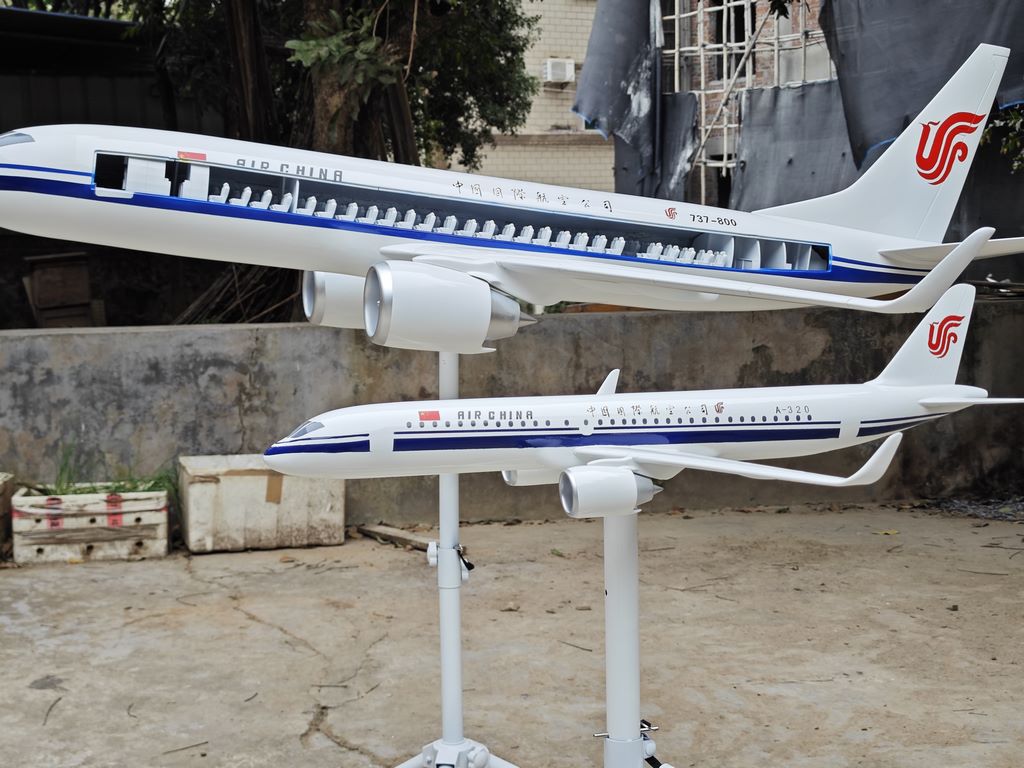

Complete Aircraft Model Production Plan for Air China
Complete Aircraft Model Production Plan for Air China
1、 Design analysis and material preparation
Design analysis based on the complete aircraft model requirement provided by the customer (No. 771-000)
Emphasis will be placed on retaining the overall streamlined design of the aircraft, highlighting the iconic livery of Air China
Selecting high-quality ABS engineering plastic as the main material to ensure the integrity and structural strength of the model
2、 Mold development and injection molding
Adopting an integrated mold design:
The main body of the body is injection molded as a whole to avoid any joint marks
The connection between the wing and the fuselage adopts an invisible buckle structure
The transparent porthole adopts embedded injection molding technology
Precision injection control:
Control injection temperature to ensure surface smoothness
Maintain a uniform wall thickness distribution (1.2-1.5mm)
Reserved bracket interface position
3、 Surface treatment process
Fine polishing:
Use 800-3000 grit sandpaper to polish step by step
Focus on handling the mold line and component joints
Maintain the smoothness of the body curve
Primer treatment:
Spray high adhesion epoxy primer
Curing at 60 ℃ for 2 hours
Surface flatness treatment
4、 Painting process flow
Basic coating:
Overall spray painted in China International Aviation Standard White
Three thin sprays to achieve optimal coverage effect
Detail coating:
Use a mask template to complete the blue waistline spraying
The tail phoenix logo adopts water transfer printing technology
The text of ‘China Construction Bank’ is printed using screen printing
Identification production:
The body number 771-000 is laser engraved
The Xiaoyi logo uses precision transfer printing technology
Micro printing of safety warning signs
5、 Quality Inspection Standards
Appearance inspection:
Surface smoothness testing
Coating integrity inspection
Identification clarity verification
Structural inspection:
Stability test of bracket connection
Inspection of assembly accuracy of each component
Overall balance verification
6、 Packaging plan
Custom EPS foam lining
Transparent display cover protection
Special display bracket
