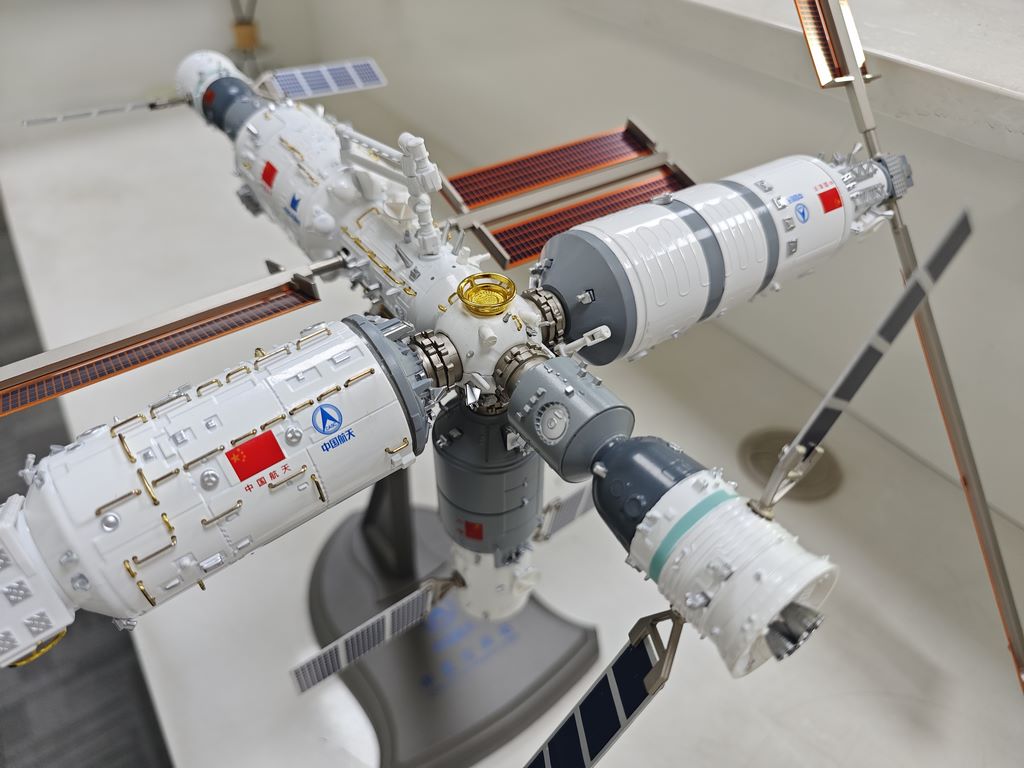

Static space station display model manufacturer

1、 Main framework construction

Core cabin section: 3D printed ABS modules are used for splicing, and the joints are filled with epoxy soil and polished smooth
Solar panel: 0.3mm transparent PET board laser cut wing, UV glue fixed hinge structure for adjustable angle
Docking ring: aluminum alloy turning and forming, anodized treatment presents a metallic texture
2、 Modular assembly process
Segmented assembly:
First, complete the magnetic docking between the core module and the experimental module
Secure external equipment compartment with concealed snap fasteners
Pipeline system:
0.2mm silver plated copper wire simulated cable bundle
Wrap key nodes with heat shrink tubing to enhance realism

3、 Detail enhancement processing
Surface texture:
Etching plates with added heat dissipation grilles and warning signs
Micro stamping production of rivet indentation effect
Observation window:
Double layer acrylic board with printed instrument texture
Edge coating fluorescent blue simulated sealing strip

4、 Layered coating scheme
Basic color stage:
Matte white primer overall spraying
Module covering spray painting cabin section identification color
Aging treatment:
Enamel stain wash strengthens structural shadows
Powder coating simulates space dust deposition
Special effect coating:
Local pen painted fluorescent orange warning mark
Matte protective paint with uniform texture
